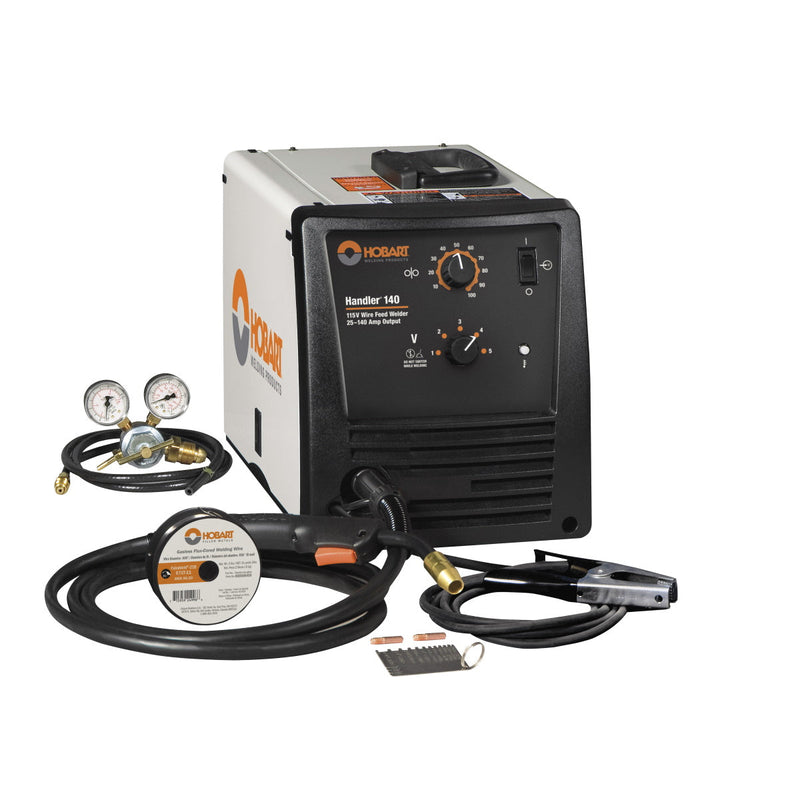

A durable, portable wire feed welder that’s great for auto repair, home or farm projects. Runs on 115V input power, welds up to 1/4 in. mild steel and is flux-cored or MIG ready.
Self-resetting motor protection
Arc Performance
Industrial cast aluminum wire drive system
Five-position voltage control
Quick Select drive roll
Weighs only 57 pounds
Convenient polarity changeover
Sloped control panel
Self- resetting thermal overload protection
What's Included
-
Comfortable 10 ft. (3 m) HR-100 gun
-
Owner's manual with installation, operation and maintenance guidelines.
-
10 ft. (3 m) work cable with clamp
-
Built-in gas solenoid valve and dual-gauge regulator with gas hose
-
Spool hub assembly accommodates 4 or 8 in. spools
-
Sample spool of .030 in. (0.8mm) self-shielding flux-cored wire
-
.030 in. (0.8mm) contact tips
-
Quick Select™ drive roll for .024 in. (0.6mm) or .030/.035 in. (08/.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
-
Power cord with plug
-
Welding guide and material thickness gauge
General Specifications
| Title | Handler® 140 MIG Welder |
|---|---|
| Applications | Welding Projects |
| Industries | Farm and Ranch Auto Repair |
| Amperage | 25 A - 140 A |
| Material Thickness | Mild Steel 24 ga. (0.5 mm) - 1/4 in. (6.4 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Current Type | DC |
| Rated Output | 90 A @ 20% duty cycle |
| Max Open Circuit Voltage | 28 VDC |
| Wire Feed Speed | 40 IPM - 700 IPM |
| Wire Diameter | Stainless 0.024 in. - 0.035 in. Stainless 0.6 mm. - 0.9 mm. Solid Steel 0.6 mm. - 0.9 mm. Solid Steel 0.024 in. - 0.035 in. Flux Cored 0.03 in. - 0.035 in. Flux Cored 0.8 mm. - 0.9 mm. |
| Portability | Handle(s) |
| Weld Output | CV |
| Input Voltage | 110/115/120 V |
| Input Phase | 1-Phase |
| Input Hz | 60 Hz |
| Net Width | 10.625 in |
| Net Height | 12.375 in |
| Net Length | 19.5 in |
| Net Weight | 57 lbs |
| Warranty | 3 Years Hobart Warranty |
